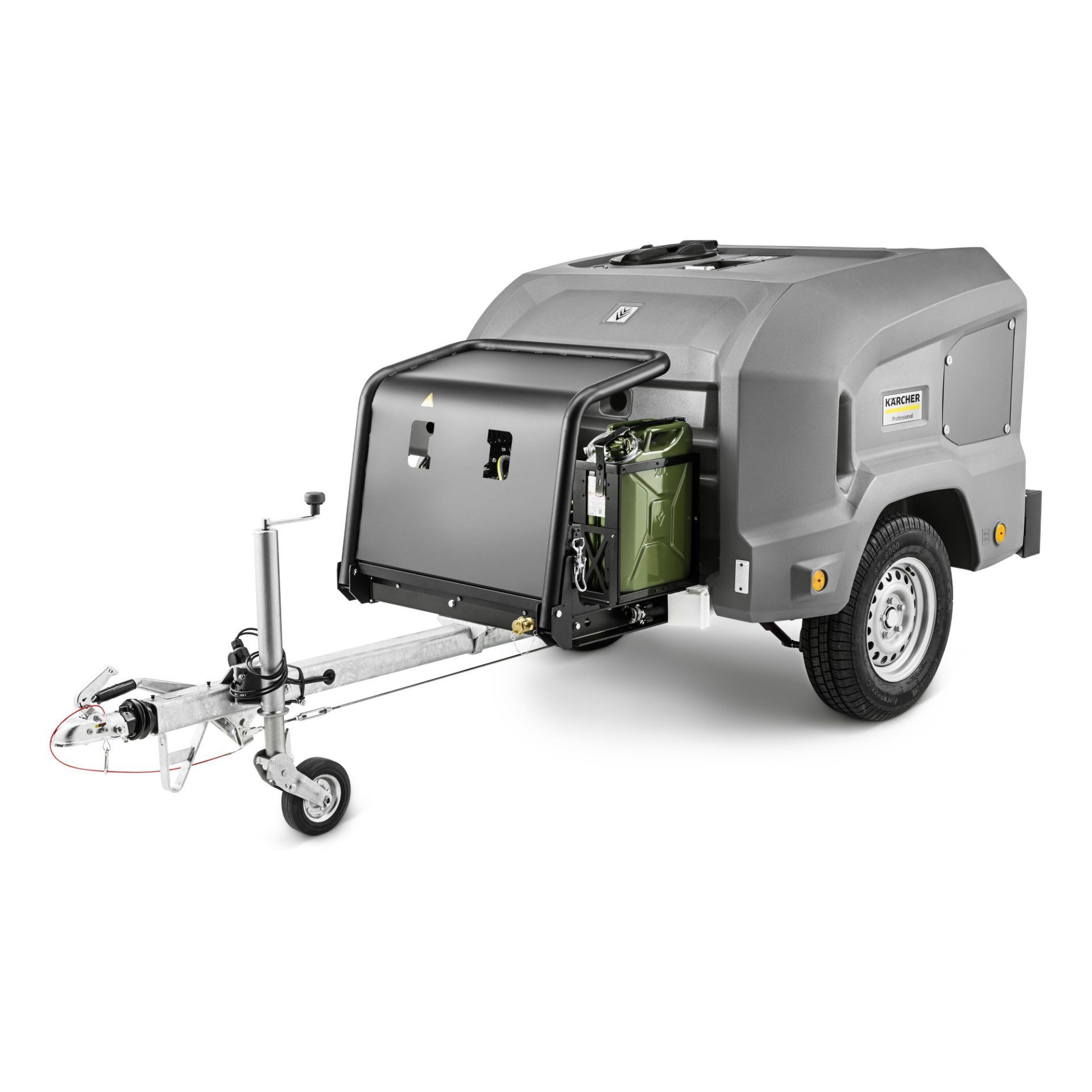

Kärcher HD 9/23 De Tr1 – Cold Water Pressure Washer Trailer

£14,995.00 (incl. VAT)
£12,495.83 (excl. VAT)


The HD 9/23 De Tr1 is a mobile, trailer-based, diesel operated, cold water pressure washer which is the ideal machine for cleaning applications on construction sites and in municipalities.

Availability: In Stock SKU: 1.524-954.2
  • Free delivery over £99
  • Need help? Call 01392 672749
  • 100% safe online shopping
  • Easy returns within 28 days
Book a FREE Demonstration

Call 01392 672749 to order this product

With water and power all on board, the reliable and robust cold water trailer meets the tough demands of high pressure cleaning in industries such as construction or day to day work in municipalities. The HD 9/23 De Tr1 features a large 1000 litre water tank and a powerful Yanmar diesel engine which allows for long intervals of independent operation, up to one hour of continuous use. The machine provides a water flow of up to 930 l/h and a working pressure of 230 bar providing a cleaning solution for even the toughest of cleaning tasks. Equipped with the EASY!Force trigger gun, as standard, a new dimension of ergonomics towards high pressure cleaning, eliminating user fatigue and preventing stop start cleaning. The cold water trailer provides maximum user flexibility thanks to its configurable options, allowing for tailor-made cleaning solutions for specific requirements.

Additional information



 HD 9/23 De Tr1: Independent of an external power or water supply

Independent of an external power or water supply

Yanmar diesel or Honda petrol engines (both EU STAGE V) for independent work. 1000 litre water tank for at least one hour of work at full power. Integrated trailer concept for high mobility and maximum independence.

 HD 9/23 De Tr1: Easy and convenient operation

Easy and convenient operation

Very simple operation, thus designed for use in rental parks. Convenient equipment with motor electro start and optional hose reel. Storage compartment in the rear section for storing fuel canister and accessories.

 HD 9/23 De Tr1: Robust design for harsh working conditions

Robust design for harsh working conditions

Reliable, tried-and-tested Kärcher high-pressure technology with long service life. Bullbar and rear tarpaulin for protecting the machine available as optional equipment. The integrated antifreeze system permits work activities all year round.

Technical data

Flow Rate (l/h) 400 – 930
Operating pressure (bar/MPa) 40 – 230 / 4 – 23
Engine manufacturer Yanmar
number of simultaneous users 1
Mobility Trailer
Weight (with accessories) (kg) 600
Dimensions (L × W × H) (mm) 3382 x 1496 x 1435
  • Trigger gun, EASY!Force Advanced
  • High-pressure hose, 15 m, Premium quality, ID 8, 315 bar
  • Spray lance, 1050 mm
  • Servo Control
  • Power nozzle
Product Data Sheet
