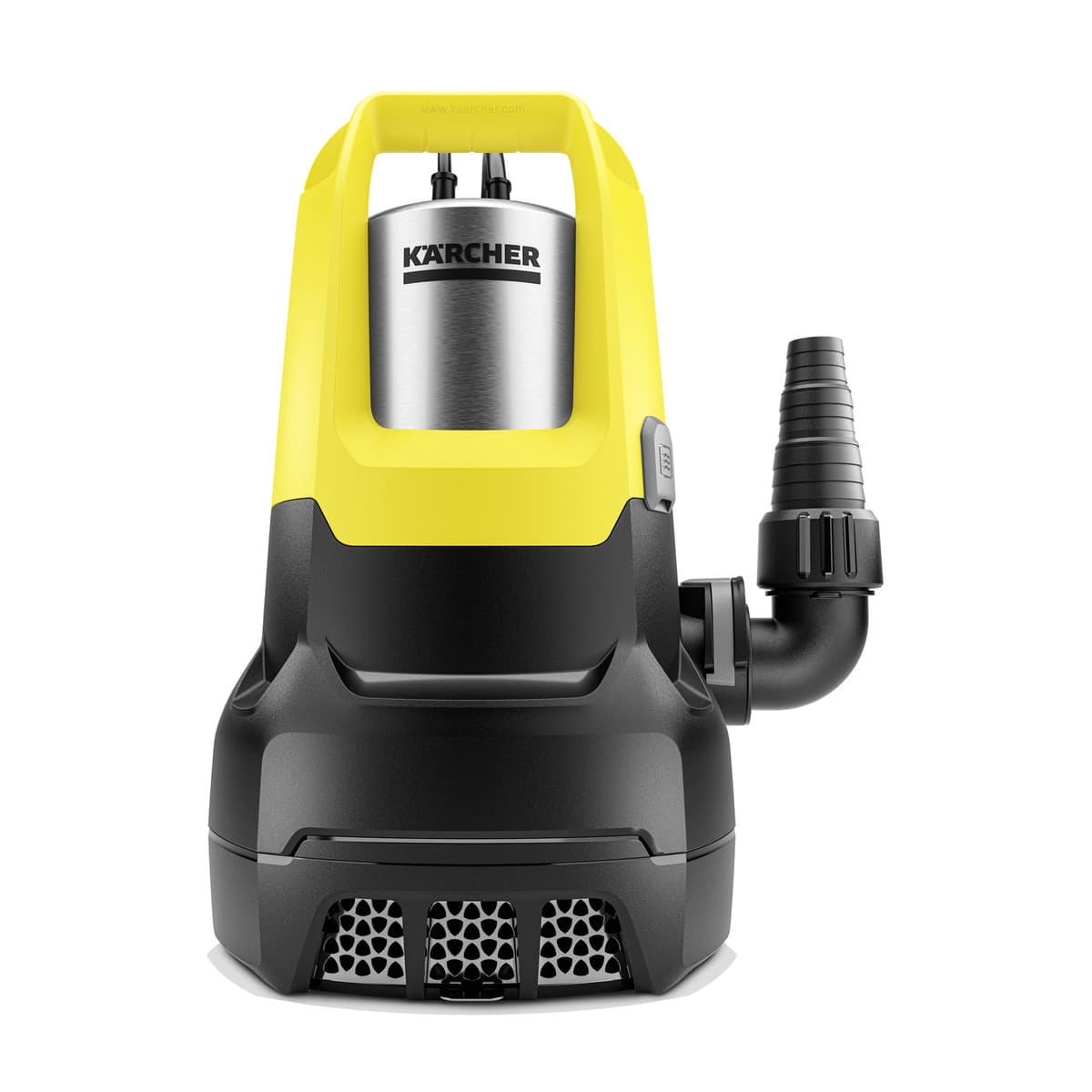

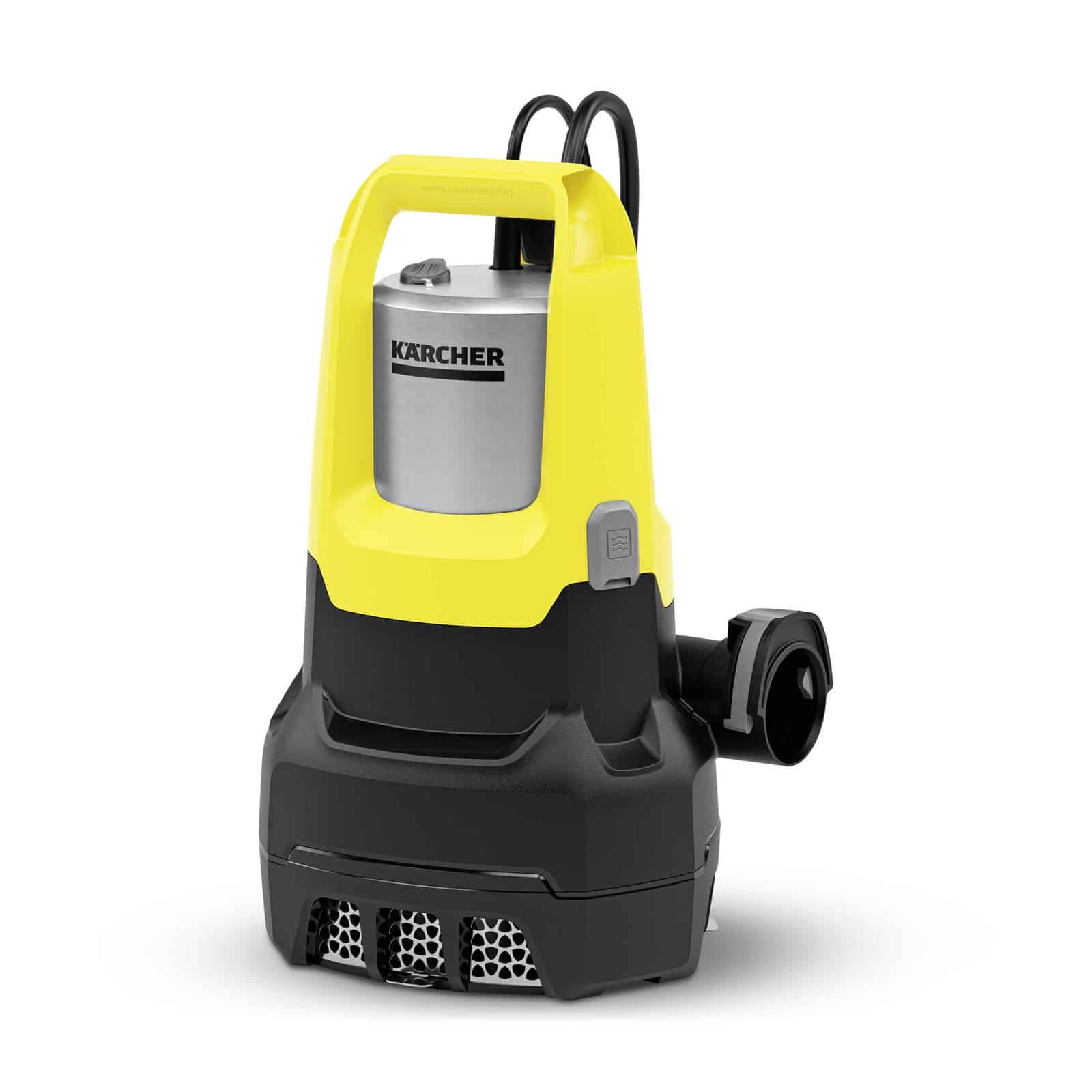

Kärcher SP 22.000 Submersible Dirty Water Pump with Dirt Level Sensor

SKU: 1.645-852.0

With level sensor and integrated prefilter: For challenging drainage tasks the submersible dirty water pump SP 22,000 Dirt Level Sensor manages to pump out dirty water at a rate of up to 22,000 l/h.


In Stock
Usually dispatched within 1 - 3 days.

£139.00 (incl. VAT)£115.83 (excl. VAT)

Or 3 interest-free payments of £46.33 with Klarna

Payment options available at checkout

Description

Description

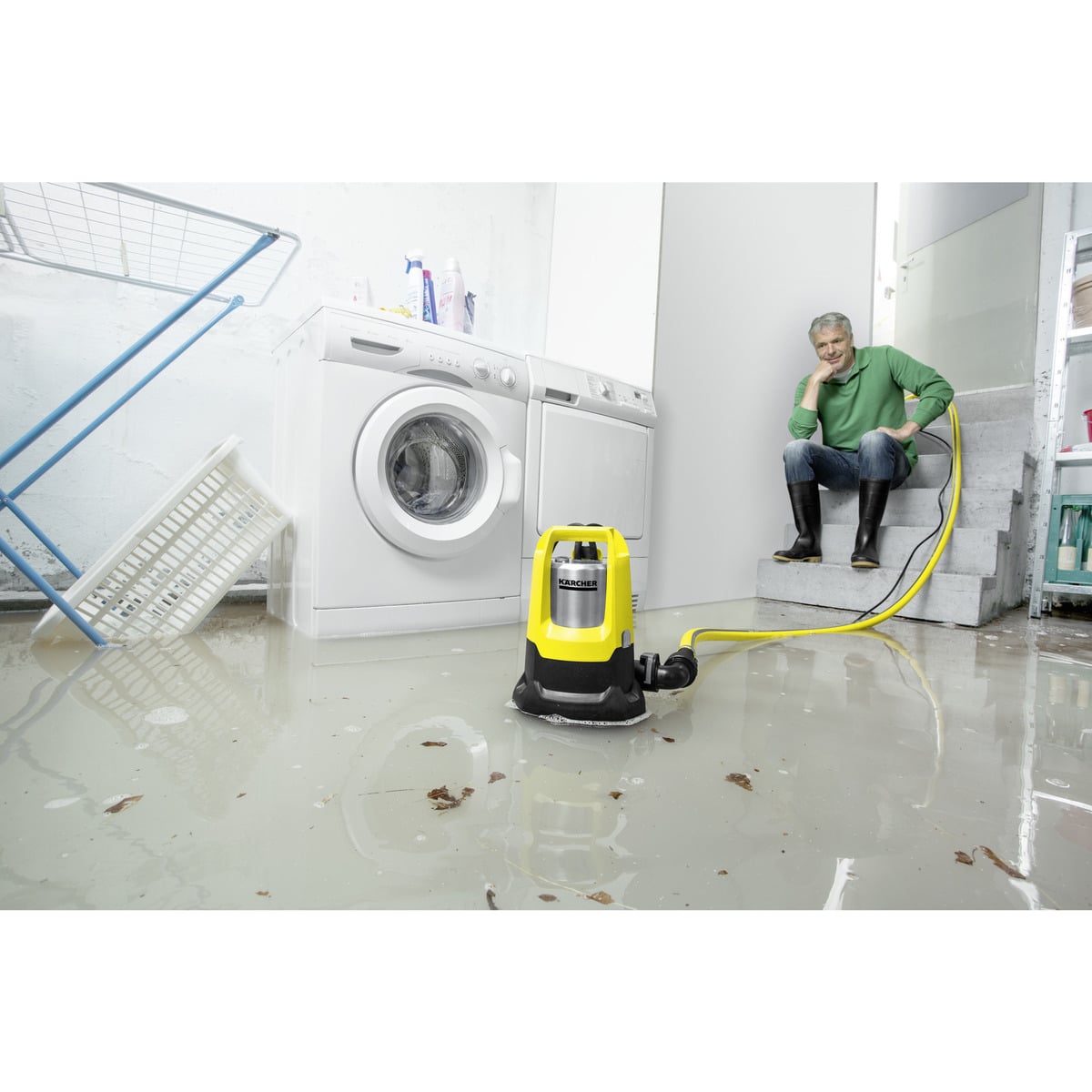

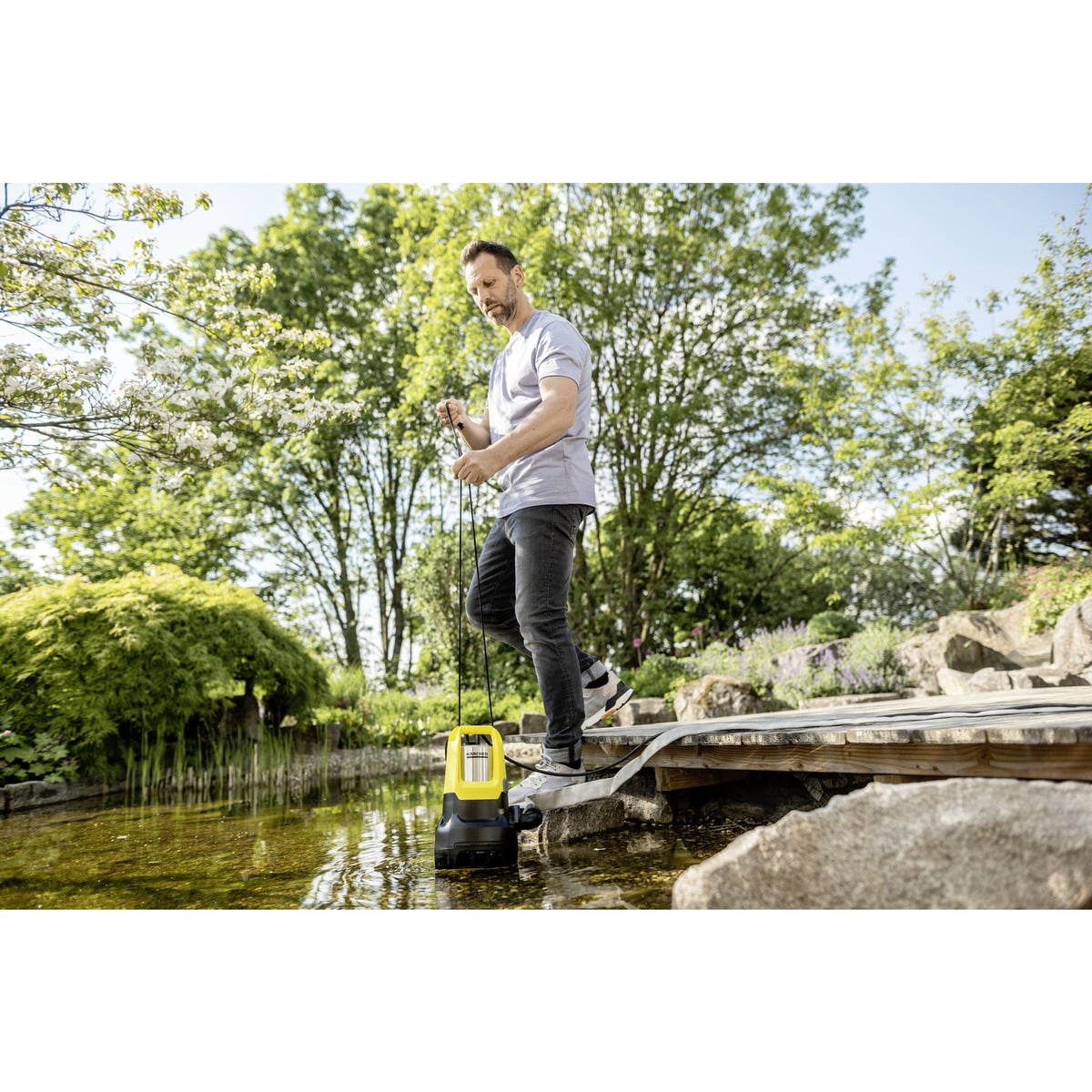

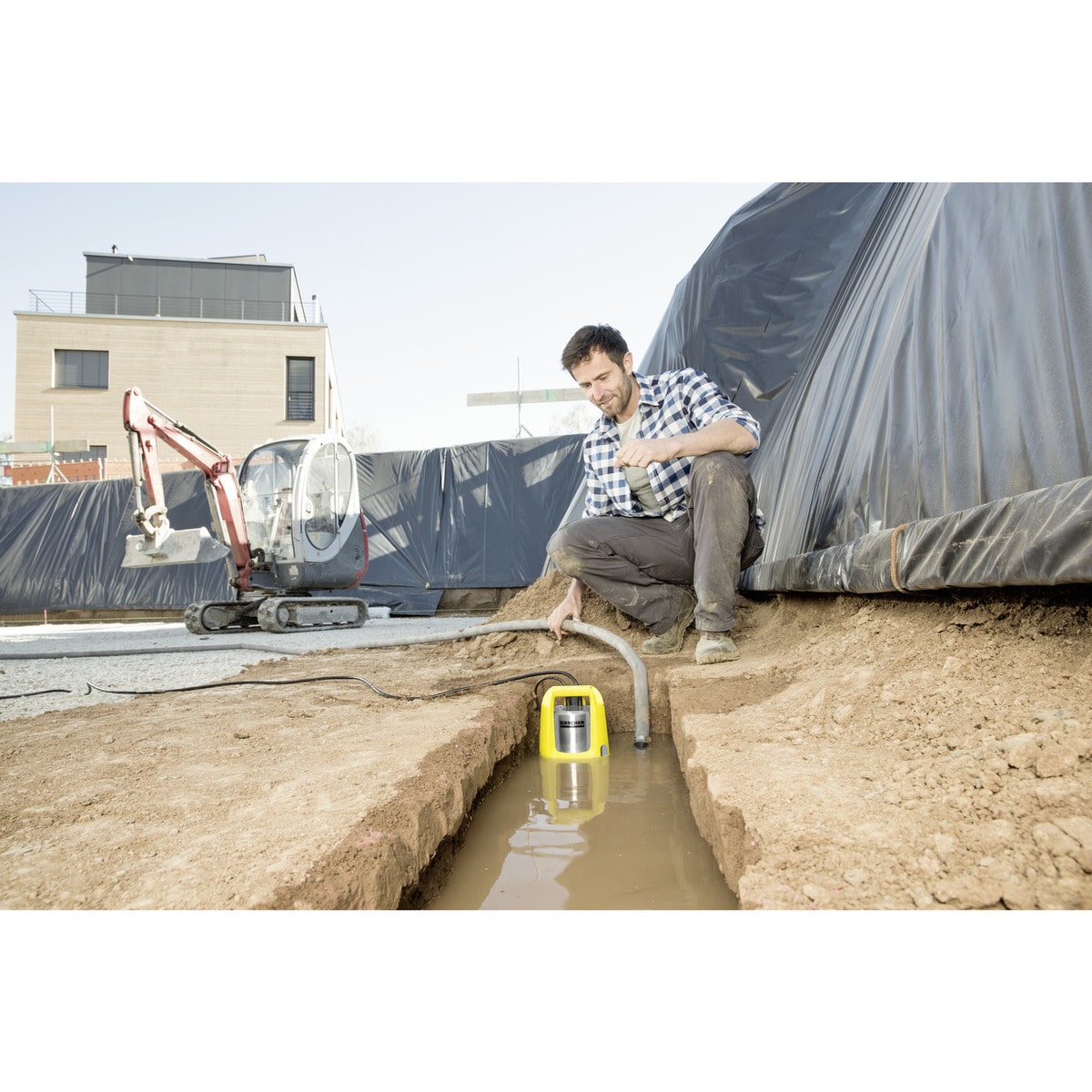

An individually adjustable level sensor starts the dirty water pump SP 22,000 Dirt Level Sensor immediately upon contact with water. If the water level drops below the level sensor again, the pump stops automatically after 15 seconds. The extremely powerful submersible pump is ideal for draining, for example, large garden ponds, flooded basements or construction pits, as it can reliably pump out dirty water (dirt particles of up to 30 mm) at a rate of up to 22,000 l/h. With even dirtier water, the integrated pull-down stainless steel prefilter serves to protect against blockages. The submersible pump can also be switched to continuous operation by means of the Automatic/Manual switch. It can reliably pump water away down to a residual water level of 35 millimetres – both in continuous operation and in automatic mode, when the level sensor is set accordingly. With the Quick Connect connection thread, 1″, 1 1/4″ and 1 1/2″ inch hoses can be connected without complication. Thanks to the stainless steel housing and robust slide ring sealing, the pump has a particularly long service life. An extended warranty of five years is available as an option.

Features & Benefits
Ceramic Face Seal

For an extra long lifetime.

Level Sensor

For continuously variable definition of the switch-on and switch-off points of the pumps.

Quick Connect

Connection thread for quick and uncomplicated connection of 1", 1 1/4" and 1 1/2" hoses.

Specifications

Technical data

Max. Motor Rating (W) 750
Max. Flow Rate (l/h) < 22000
Delivery Temperature (°C) max. 35
Delivery Head (m) 8
Pressure (bar) max. 0.8
Grain Size (mm) max. 30
Depth of Immersion (m) max. 7
After-Running Time (s) 15
Min. Residual Water, manual (mm) 35
Residual Water Height (mm) 35
Connecting Thread G1 1/2
Power Cable (m) 10
Voltage (V) 230 - 240
Frequency (Hz) 50
Colour yellow
Weight without accessories (kg) 6.7
Weight incl. packaging (kg) 7.6
Dimensions (L x W x H) (mm) 238 x 293 x 354
What's Included

Scope of supply

  • Connecting Hose: 1'', 1 1/4'', 1 1/2''

Equipment

  • Comfortable Carrying Handle
  • Easy hose connection thanks to Quick Connect
  • Switching between manual/automatic operation: Switch on the pump
  • Level Sensor: Continuous switching level definition
  • Integrated Stainless Steel Prefilter
  • In automatic operation (auto), the pump automatically switches with the water level
  • In manual operation, the pump runs continuously until the minimum quantity of residual water is reached
  • Ceramic Face Seal
