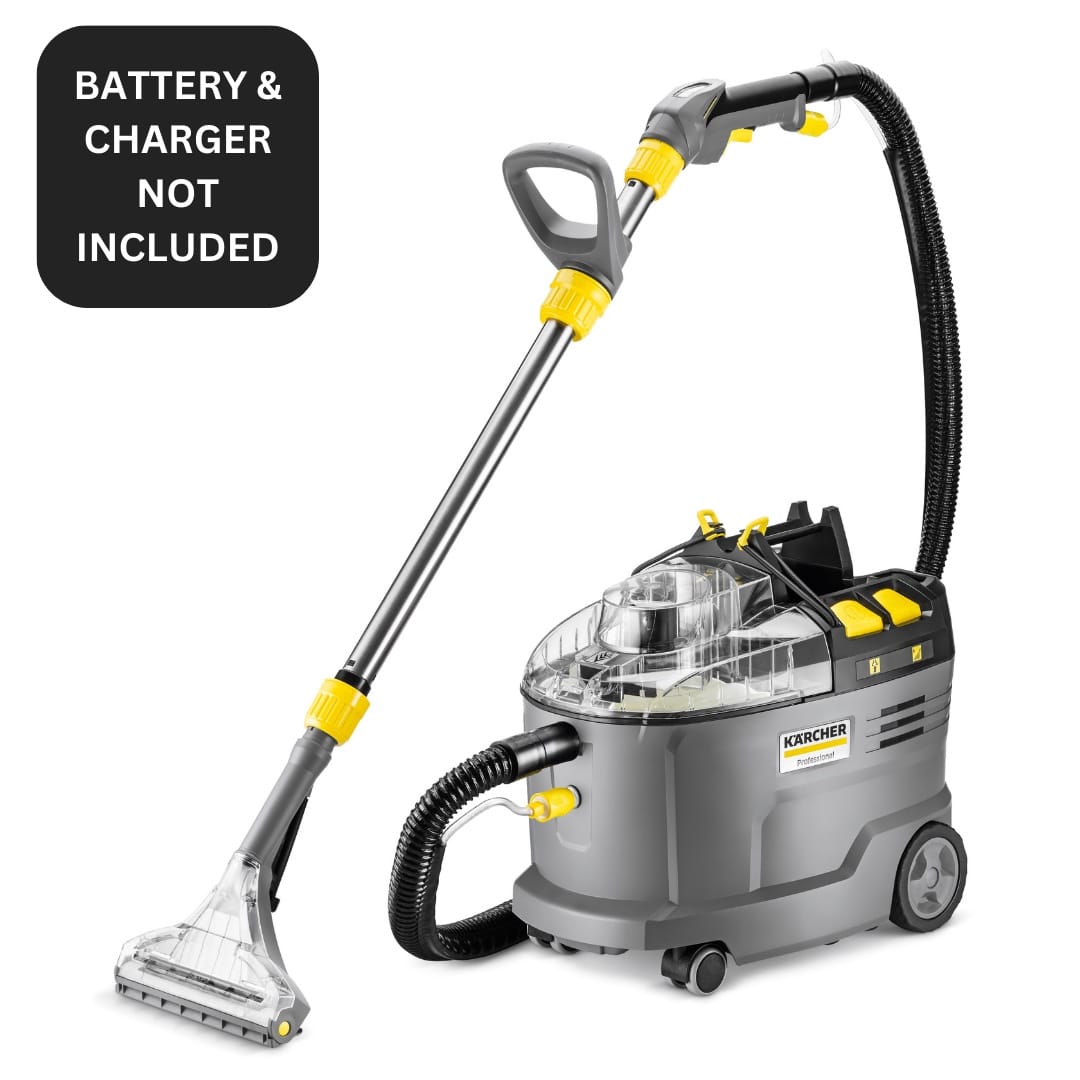

Kärcher Puzzi 9/1 Battery Spray Extraction Cleaner

SKU: 1.101-702.0

The Kärcher Puzzi 9/1 Bp Adv is a powerful, quiet and cordless professional spray extraction cleaner, ideal for deep cleaning carpets, upholstery and vehicle interiors with excellent results and complete freedom of movement.

SHELL MACHINE ONLY, BATTERY AND CHARGER NOT INCLUDED.


In Stock
Usually dispatched within 1 - 3 days.

£649.00 (incl. VAT)£540.83 (excl. VAT)

Or 3 interest-free payments of £216.33 with Klarna

Payment options available at checkout

Description

Description

The only one of its kind in the world, offering an extremely robust design and cordless flexibility: Our Puzzi 9/1 Bp Adv Pack cordless spray extraction cleaner. As the only professional-standard battery powered spray extraction machine on the market, this Puzzi never fails to impress with its exceptional performance and maximum freedom of movement when deep-cleaning upholstery, carpets and other textile areas in any industry, be it hotels or hospitality, vehicle valeting or building cleaning operations. Despite its power, this Puzzi is extremely quiet, making it ideal for use in public areas: plus its ergonomically designed handle means it can easily be carried around one-handed. For best cleaning results, the cleaning solution is pressurised and sprayed deep into the textile fibres, then sucked back up together with the loosened dirt. When ordering this machine version, please bear in mind that the powerful 36 V Kärcher Battery Power+ battery and the corresponding fast charger must be ordered separately.

When ordering this machine version, please bear in mind that the powerful 36 V Kärcher Battery Power+ battery and the corresponding fast charger must be ordered separately.

Downloads
Name Download
Product Data Sheet Download
Features & Benefits

Cordless flexibility and powerful performance

Compatible with Kärcher 36 V Battery Power+ batteries, providing complete freedom of movement without power cables. The battery display shows the remaining runtime, while powerful spray extraction delivers deep cleaning and fast drying times.

Built for professional use

Robust construction and a durable diaphragm pump ensure reliable performance during demanding cleaning tasks. Low operating noise makes the machine ideal for hotels, offices and other noise-sensitive environments.

Versatile carpet and upholstery cleaning

The 240 mm floor nozzle with flexible suction lip provides effective carpet cleaning and excellent water recovery. The compact upholstery nozzle is ideal for furniture, seating and vehicle interiors, including confined spaces.

Easy to transport and operate

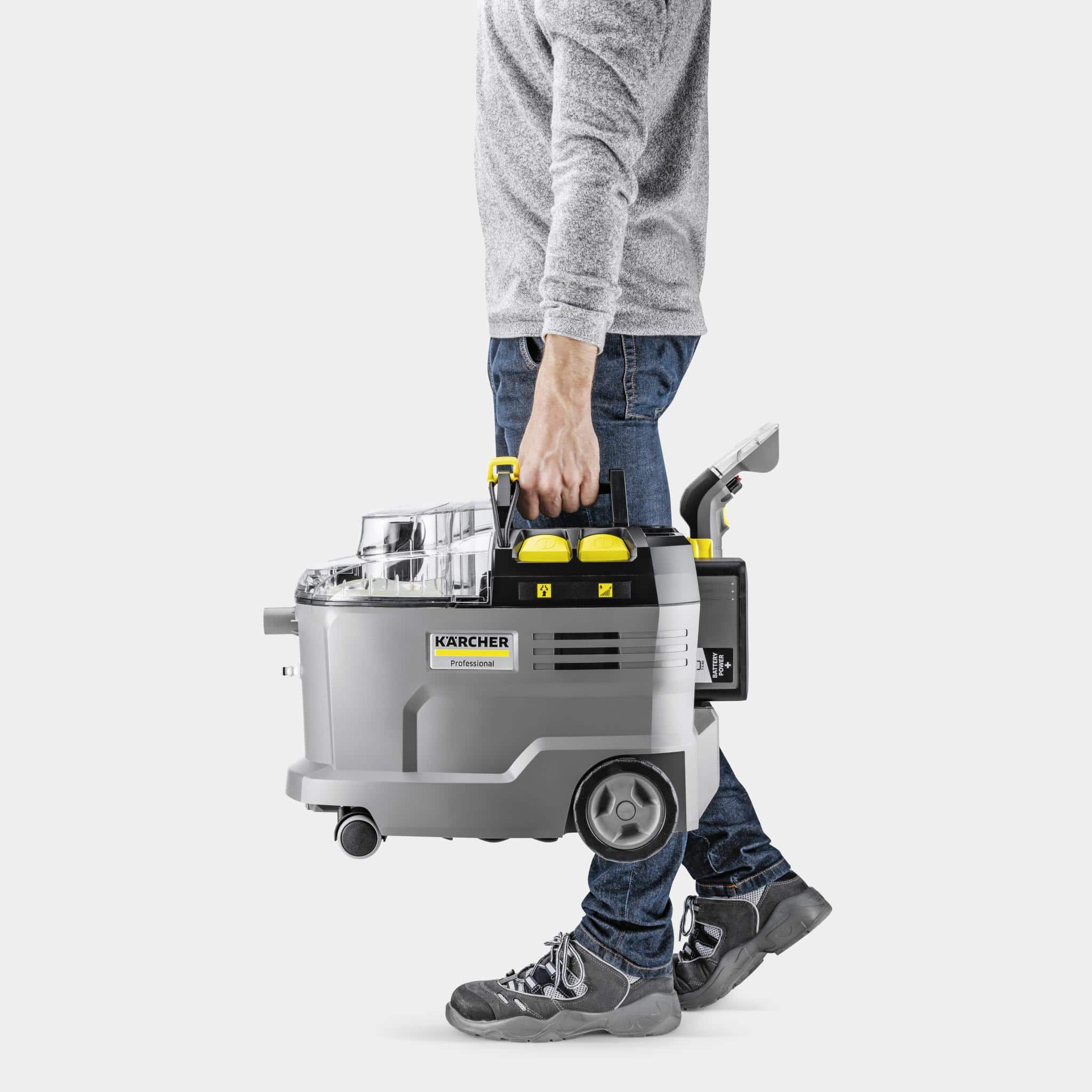

Lightweight design with an ergonomic carrying handle allows convenient one-handed transport. Large foot-operated switches, a removable 2-in-1 water container and integrated accessory storage make everyday cleaning simple and efficient.

Specification
Battery platform 36 V battery platform
Area performance (m²/h) 12 - 18
Fresh/dirty water tank (l) 9 / 7
Air flow (l/s) 57
Vacuum (kPa) 15
Spray rate (l/min) 0.5
Spray pressure (MPa) 0.16 - 0.22
Turbine capacity (W) 550
Pump capacity (W) 4
Rated input power (W) 575
Sound pressure level (dB(A)) 70
Standard accessory diameter (mm) 32
Number of batteries required 1
Runtime with 7.5 Ah battery (min) 35
Runtime with 6.0 Ah battery (min) 27
Battery charging time 80% / 100% (min) 58 / 81
Charging current (A) 6
Battery charger voltage (V) 100 - 240
Battery charger frequency (Hz) 50 - 60
Colour Anthracite
Weight without accessories (kg) 7.6
Weight incl. packaging (kg) 13
Dimensions (L × W × H) (mm) 540 x 332 x 460

What's Included

  • 2.5 m spray/suction hose
  • 700 mm spray/suction tube
  • Spray/suction gun
  • Upholstery nozzle
  • Motor protection filters
  • Fresh water filter
  • 2 cleaning detergent tablets
  • Removable 2-in-1 fresh and dirty water container

Please note: Battery and battery charger are not included.
